BOTTOM POURING LADLE
Engineered for Safe, Precise & Efficient Molten Metal Handling
SPECIFICATIONS
| CAPACITY MT | LADLE DIAMETER MM | LADLE HEIGHT MM | SHELL THICKNESS MM | WORKING TEMPERATURE °C | EMPTY WEIGHT KG |
|---|---|---|---|---|---|
| 0.5 | 900 | 1100 | 12 | 1600 | 650 |
| 1.0 | 1100 | 1250 | 14 | 1600 | 950 |
| 1.5 | 1200 | 1350 | 16 | 1600 | 1250 |
| 2.0 | 1350 | 1450 | 18 | 1600 | 1650 |
| 3.0 | 1500 | 1600 | 20 | 1600 | 2200 |
| 5.0 | 1750 | 1800 | 22 | 1600 | 3200 |
* Specifications can be customized as per customer requirement.
OVERVIEW

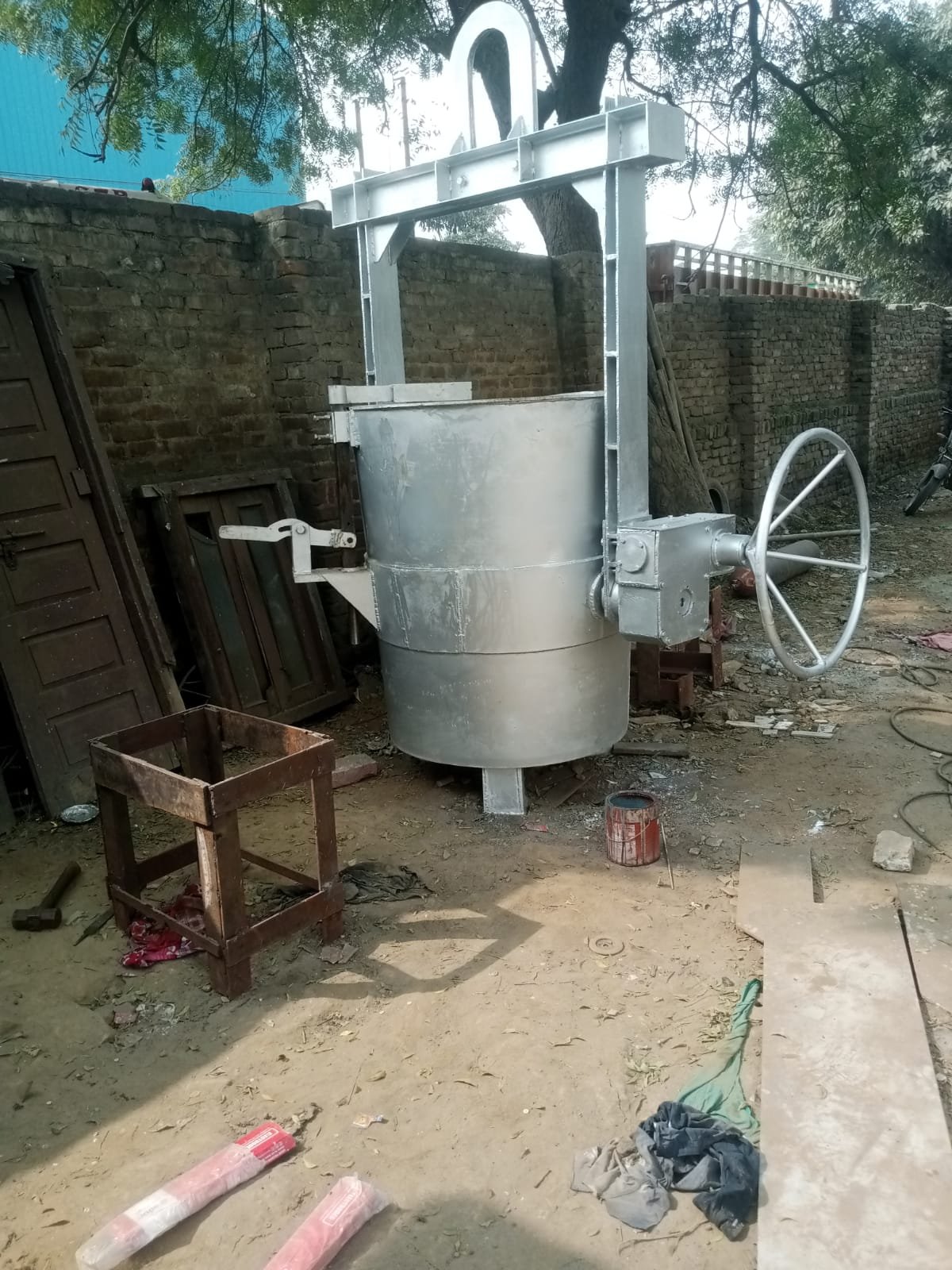

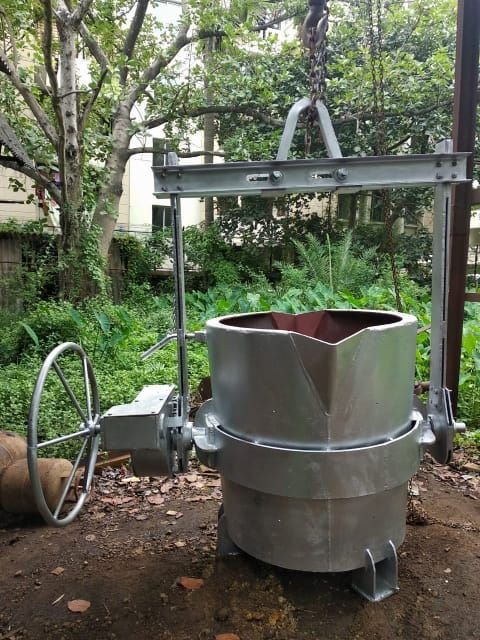

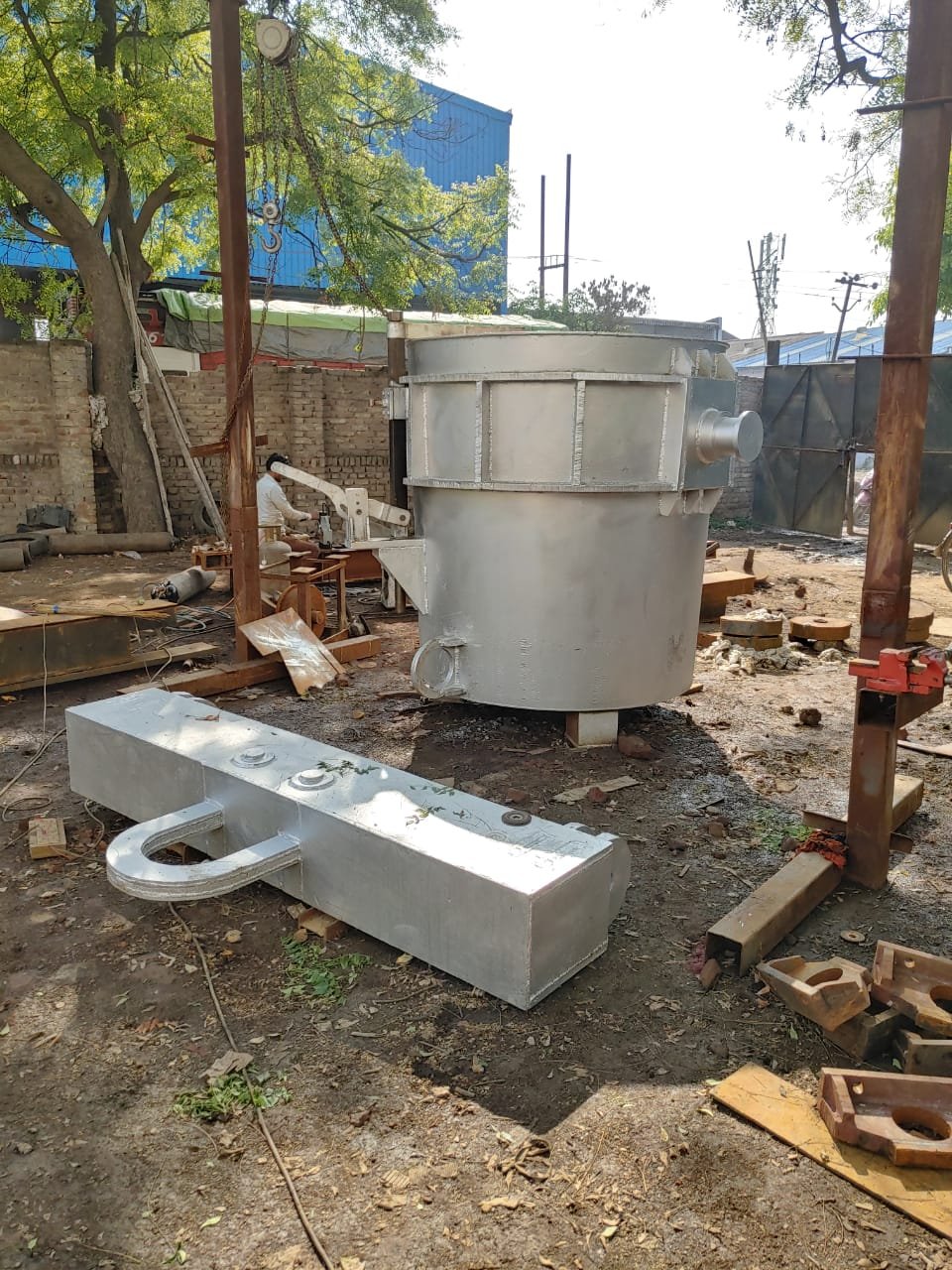

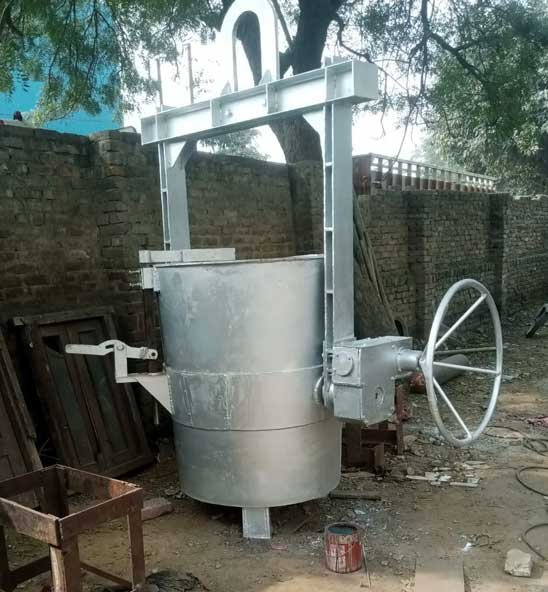

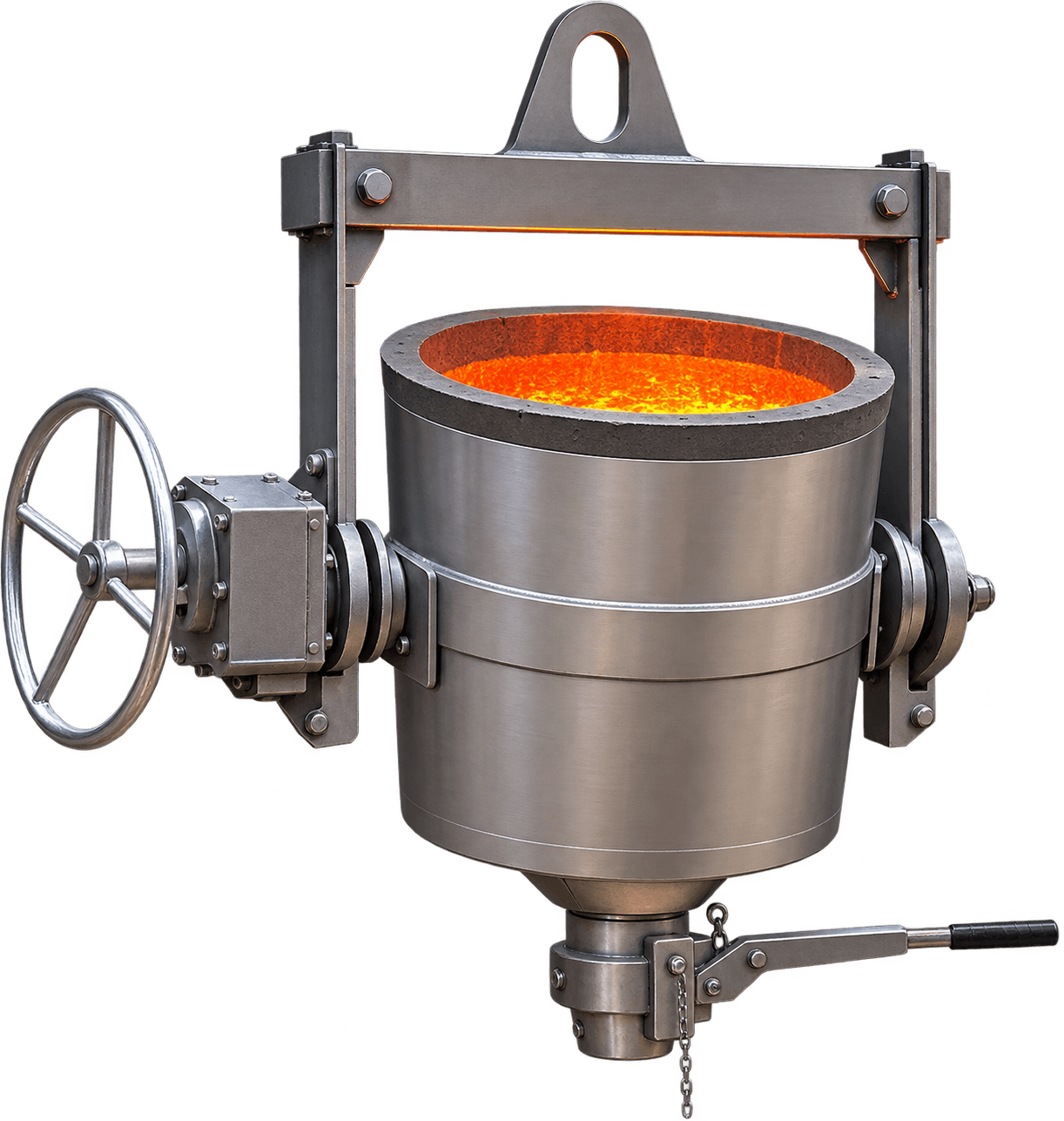

DS Engineering Services offers high-performance Bottom Pouring Ladles designed for safe and efficient handling of molten metal in foundries and steel plants. These ladles ensure precise pouring, minimal spillage and maximum safety for operators.
KEY HIGHLIGHTS
- ✓ Heavy-duty steel construction for long working life
- ✓ Precision bottom pouring mechanism for controlled flow
- ✓ Refractory lining for superior thermal resistance
- ✓ Balanced design for smooth handling and pouring
- ✓ Suitable for various capacities and applications
- ✓ Custom design available as per specific requirement
TECHNICAL SPECIFICATIONS
APPLICATION
PRODUCT GALLERY
WHY CHOOSE US
Experience & Expertise
10+ years of experience in engineering and manufacturing industrial equipment.
Quality Assurance
Strict quality control at every stage to deliver reliable and durable products.
Custom Solutions
Tailor-made solutions designed as per customer requirements and industry standards.
Timely Delivery
On-time delivery with commitment to excellence and customer satisfaction.
After-Sales Support
Dedicated support and service to ensure long-term performance.
FREQUENTLY ASKED QUESTIONS
A Bottom Pouring Ladle is used for safe and controlled handling and pouring of molten metal in foundries, steel plants and metal casting applications.
Bottom Pouring Ladles are available from 0.5 MT to 5.0 MT capacity. Customized capacities can also be developed according to specific customer requirements.
Yes. The ladle can be customized according to capacity, dimensions, lining, tilting mechanism, material and other application-specific requirements.
The Bottom Pouring Ladle can be designed for working temperatures up to approximately 1600°C, depending on the refractory lining and application.
High Alumina or Magnesia refractory lining can be used depending on the molten metal, operating temperature and application requirements.
Yes. DS Engineering Services provides technical assistance and after-sales support to help customers maintain reliable and long-term equipment performance.
