TEAPOT SPOUT LADLE
Reliable molten metal handling with controlled pouring, excellent flow stability, and safe foundry operation.
SPECIFICATIONS
| CAPACITY MT | LADLE DIAMETER MM | LADLE HEIGHT MM | SHELL THICKNESS MM | WORKING TEMPERATURE °C | EMPTY WEIGHT KG |
|---|---|---|---|---|---|
| 0.5 | 900 | 1100 | 12 | 1600 | 650 |
| 1.0 | 1100 | 1250 | 14 | 1600 | 950 |
| 1.5 | 1200 | 1350 | 16 | 1600 | 1250 |
| 2.0 | 1350 | 1450 | 18 | 1600 | 1650 |
| 3.0 | 1500 | 1600 | 20 | 1600 | 2200 |
| 5.0 | 1750 | 1800 | 22 | 1600 | 3200 |
* Specifications can be customized according to metal type, capacity, operating conditions, and customer requirements.
OVERVIEW

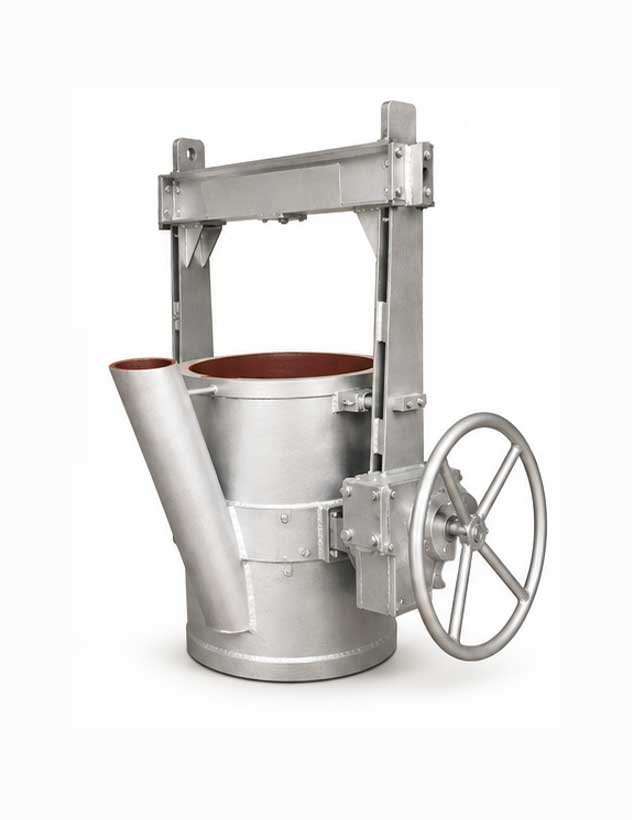

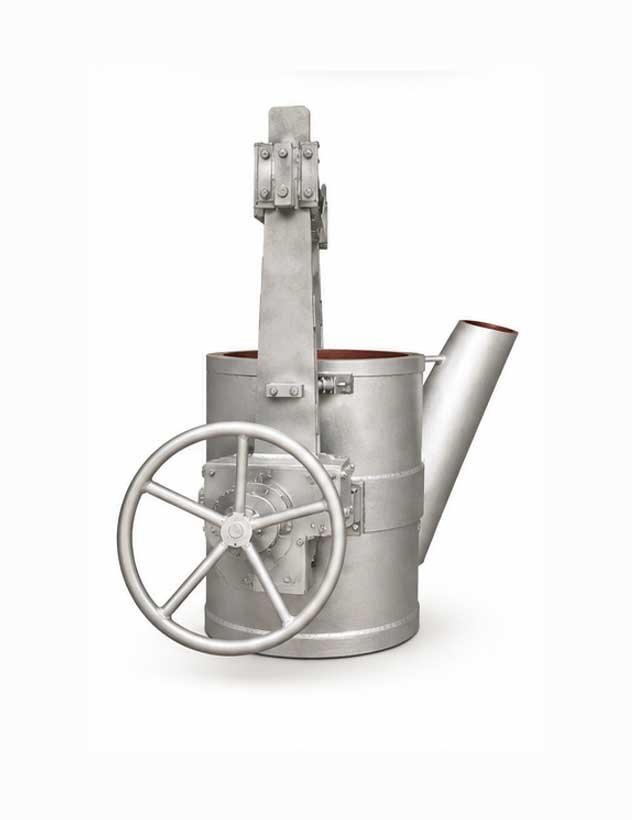

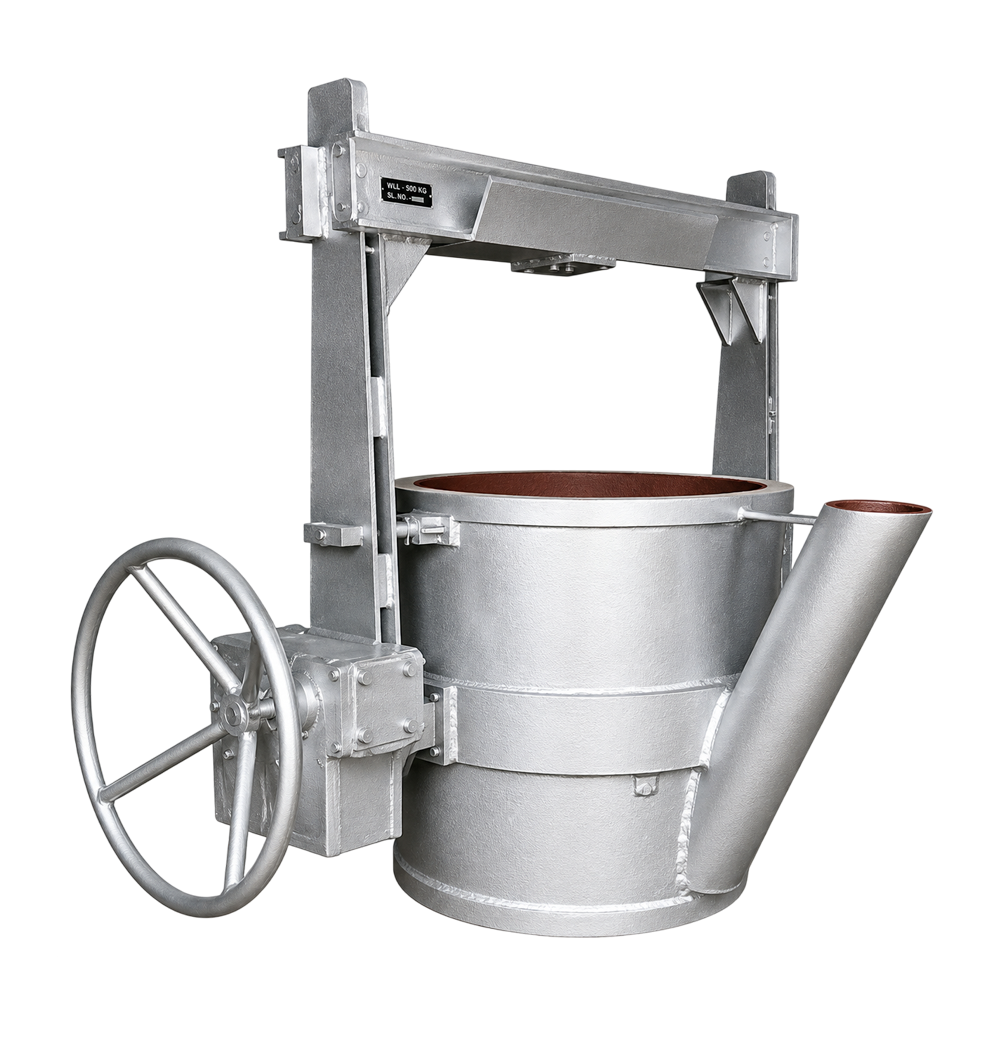

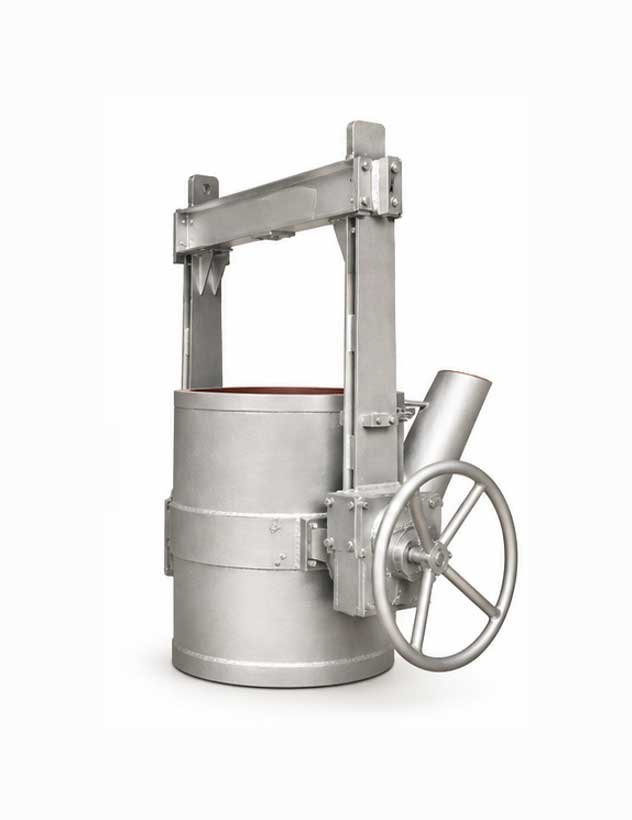

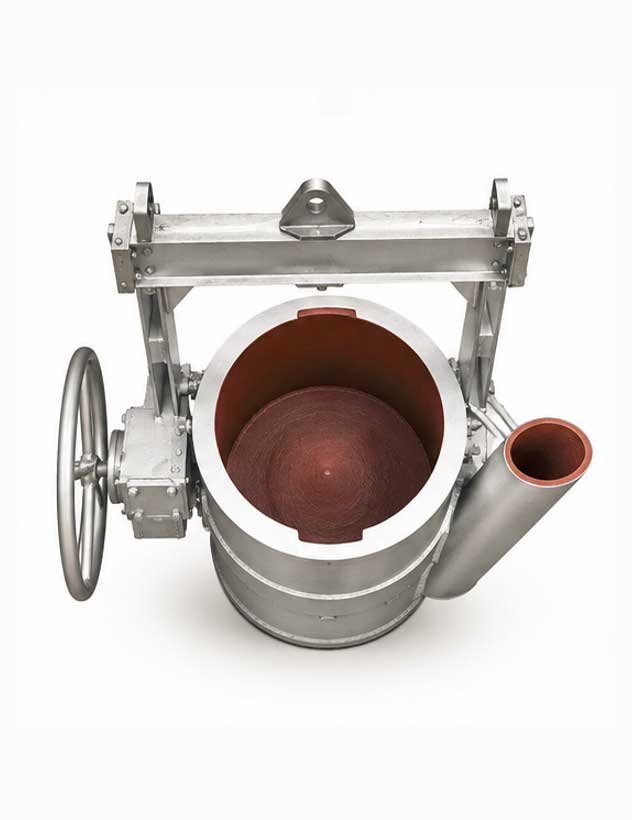

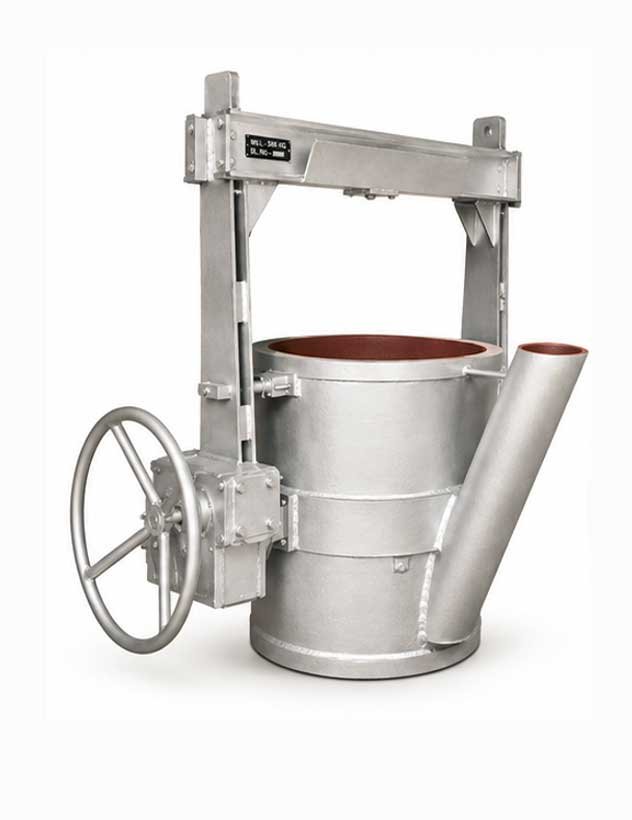

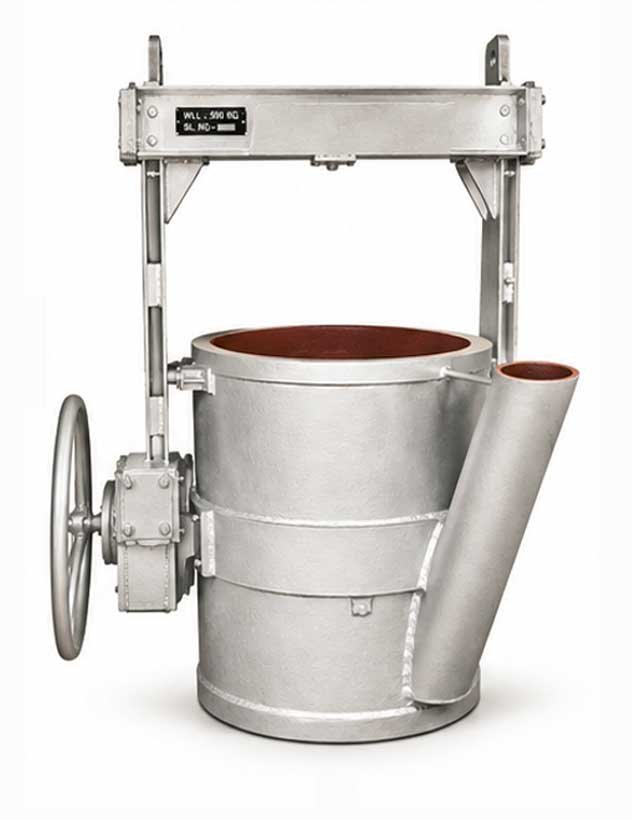

The Teapot Spout Ladle is designed for safe and controlled handling of molten metal in foundry and casting operations. Its specially designed teapot-style pouring spout helps maintain a controlled metal flow while reducing slag carryover during pouring.
KEY HIGHLIGHTS
- ✓ Specially designed teapot spout for controlled pouring
- ✓ Heavy-duty construction for demanding foundry operations
- ✓ Refractory lining for high-temperature applications
- ✓ Smooth and stable molten metal flow
- ✓ Helps minimize slag entry during pouring
- ✓ Suitable for different foundry and casting applications
TECHNICAL SPECIFICATIONS
APPLICATION
PRODUCT GALLERY
WHY CHOOSE US
Experience & Expertise
10+ years of experience in engineering and manufacturing industrial equipment.
Quality Assurance
Strict quality control at every stage to deliver reliable and durable products.
Custom Solutions
Tailor-made solutions designed as per customer requirements and industry standards.
Timely Delivery
On-time delivery with commitment to excellence and customer satisfaction.
After-Sales Support
Dedicated support and service to ensure long-term performance.
FREQUENTLY ASKED QUESTIONS
A Teapot Spout Ladle is used for handling, transferring, and controlled pouring of molten metal in foundry and casting operations.
The teapot-style spout helps provide controlled metal flow and can help reduce slag carryover during pouring.
The ladle can be designed for different ferrous and non-ferrous molten metal applications depending on the refractory lining and operating conditions.
Yes. Capacity, dimensions, lifting arrangement, lining and other configurations can be customized according to customer requirements.
Yes. The ladle can be configured with suitable lifting and handling arrangements for crane-based industrial operations.
The refractory lining is selected according to the molten metal type, operating temperature, service conditions, and required service life.
